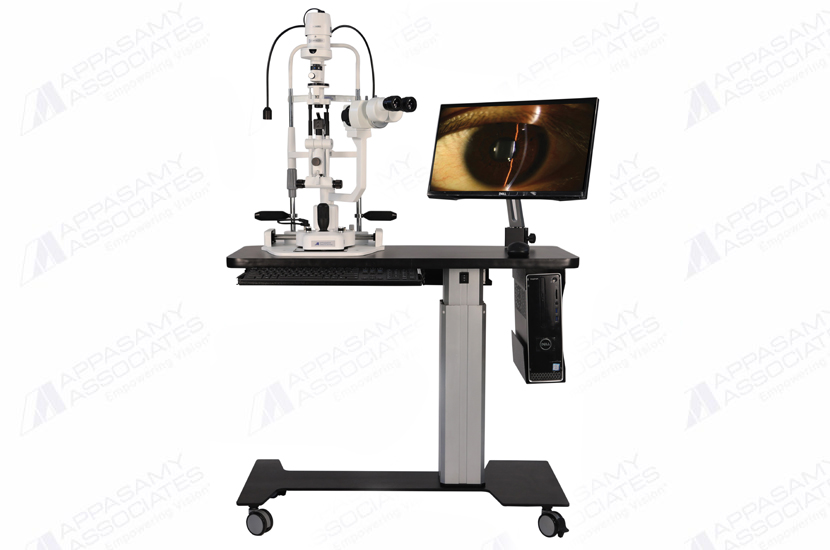

Slit Lamp Imaging System

Product Details

SLIT LAMP IMAGING

Model : SL-CAM ICM-7

Product Description

PRECISELY MADE OPTICS FOR DETAILED VIEW

High field of view and depth of focus with adjustable eyepiece comfort to the doctor even during the longer examination.

ENLARGE IMAGE FOR ACCURATE DIAGNOSIS

5 Step drum magnification changer, provide wide range of magnification from 6X to 40 X

ADOPTED TO THE FACT - LED ILLUMINATION

Consciously selected LED for its incredible performance. Universally preferred light source with the color temperature of 3800k, that works best when combined to any color filters, allowing users to view even the micro structures.

DIFFUSER TO CREATE SOFT/DRAMATIC EFFECTS ON LED ILLUMINATION

Easy access to diffuser to diffuse the illumination, that gives an exceptional overview of the anterior segment.

SOLID INTEGRATED BASE ASSAMBLY, ENABLING EASE OF OPERATION

Trigger button elegantly mounted on the omni style joystick with the convenient reach to illumination intensity knobs for effortless image or video capturing.

DESIGN AND TECHNOLOGY AT ITS BEST

UHD Digital SL CAM integrated with seemless designed slitlamp offers a high resolution image that could be easily captured by smart capturing trigger option.

Image management for successful diagnosis.

MIPS SOFTWARE (Medical image processing system)

Uniquely designed and developed tool for sequential work flow.

  •  Software supports live motion with live zoom
  •  Image and video recording with high resolution
  •  Image processing
  •  Multi user support
  •  Clint server system
  •  Remote file sharing
  •  Auto backup system
  •  Multi language support
  •  Online feedback

Technical specifications



Microscope Galilean
Magnification Change 5 Step Drum Rotation
Eye Piece 12.5x
Objective 0.4x, 0.6x, 1x, 1.6x, 2.5x
Magnification Ratio 6x, 10x, 16x, 25x, 40x
Real field of view in mm 43, 27, 16, 11, 7mm
Pupillary Distance 55 - 75 mm Adjustable
Diopter Adjustment +/- 6 D
Working Distance 100 mm
Slit Length & Width 0 - 14 mm Continually
Input Voltage 110V /220V AC, 60/50Hz
Illumination & Background Type LED
Filters Heat absorbing, Green & Cobalt blue
Movement Range Longitudinal In/Out - 99 mm
  Lateral (Left / Right) - 118 mm
  Vertical (Up/Down) - 30 mm


Chin Rest Range - 117 mm

Input Power 230 V AC
Camera
Megapixel 5.0
Active Area 5.70mm x 4.28mm
Image & Video Resolution 2592 x 1944
Frame/sec 23 fps at 648 x 486 pixel
  15 fps at 1296x972 pixel
  6 fps at 2592x1944 pixel
Special settings Cornea, Conjunctiva, Iris, Default, Auto
Temperature range -300C to +700C
Humidity range upto 80%
Software Compatible to all version of Windows
Applanation Tonometer
Principle Goldmann tonometry
Measurement range 0 - 80mmHg in 2mmHg steps
Measurement accuracy ±0.5mmHg
Motorized Instrument Table
Type Actuator
Up / Down movement range 200mm
Load Lifting Capacity 150 kg
Power Supply ~110-230V
